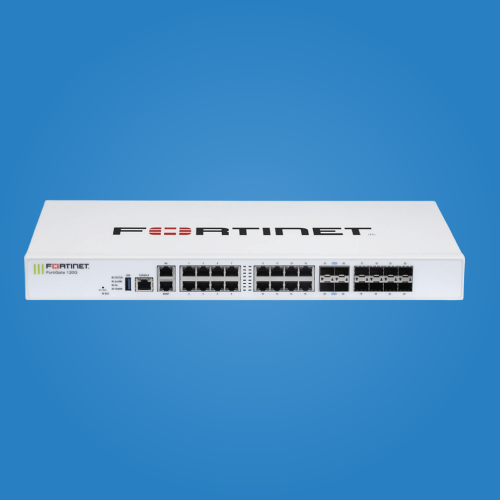

FortiGate 120G Series Firewalls
Roll over image to zoom in
₹170,999.00₹189,808.00 (-10%)
- Ports: 2x GE Mgmt/HA, 16x GE RJ45, 8x GE SFP, 4x 10GE SFP+, 1x Console, 1x USB 3.0
- Firewall Throughput: 39 Gbps
- IPS Throughput: 5.3 Gbps
- NGFW Throughput: 3.1 Gbps
- Threat Protection: 2.8 Gbps
- IPsec VPN: 35 Gbps
- SSL VPN: 1.5 Gbps
- Concurrent Sessions: 3 Million
- New Sessions/sec: 140,000
- Policies: 10,000
- SSL VPN Users: Up to 500
- Form Factor: 1U Rackmount, 44×432×254 mm, 5.5 kg
- Power: Dual AC, 38–47 W, 138–159 BTU/hr heat
- Environment: 0–40 °C, up to 90% humidity
- Special: FG-121G includes 480 GB SSD
Do you need to buy a next-gen firewall to build a secure network for your SMB or enterprise? Explore FortiGate 120G series firewalls on the ServerBasket e-store to build a rich AI/ML-driven security-integrated network. Rooted in ZTNA and SD-WAN, this FortiGate firewall is designed to deliver end-to-end threat protection for SMBs and branch offices. FortiGate 120G series next-generation firewalls, ideal for converged networking, are powered by FortiSP5 ASIC processors and FortiGate’s FortiOS. The port configuration offers a perfect blend of high-speed ports like 2x GE Mgmt/HA, 8x GE SFP, 16x GE RJ45, 4x 10GE SFP+, and more. It accommodates standard connections and provisions for future bandwidth. Experience seamless application access as NGFW’s visibility goes deep into applications, devices, and users. The firewall boasts real-time SSL checks and ultra-fast threat protection to provide edge security against cyber threats. Get unstoppable performance for mission-critical tasks with its hot-swappable dual AC power supplies. Avail India’s best price, free shipping, and 1-year warranty!
Specification
| Hardware Specifications | |
|---|---|
| Hardware Accelerated GE RJ45 Ports | 16 |
| GE RJ45 Management / HA | 1 / 1 |
| Hardware Accelerated GE SFP Slots | 8 |
| Hardware Accelerated 10 GE SFP+ FortiLink Slots (default) | 4 |
| USB Ports | |
| Console (RJ45) Port | 1 |
| Internal Storage | — |
| Trusted Platform Module (TPM) | |
| Bluetooth Low Energy (BLE) | |
| Signed Firmware Hardware Switch | — |
| System Performance* — Enterprise Traffic Mix | |
| IPS Throughput 2 | 5.3 Gbps |
| NGFW Throughput 2, 4 | 3.1 Gbps |
| Threat Protection Throughput 2, 5 | 2.8 Gbps |
| System Performance and Capacity | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 39 / 39 / 28 Gbps |
| Firewall Latency (64 byte UDP packets) | 3.17 μs |
| Firewall Throughput (Packets Per Second) | 42 Mpps |
| Concurrent Sessions (TCP) | 3 M |
| New Sessions/Second (TCP) | 140 000 |
| Firewall Policies | 10 000 |
| IPsec VPN Throughput (512 byte) 1 | 35 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2000 |
| Client-to-Gateway IPsec VPN Tunnels | 16 000 |
| SSL-VPN Throughput | 1.5 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 |
| SSL Inspection Throughput (IPS, avg. HTTPS) 3 | 3 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) 3 | 2100 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 | 315 000 |
| Application Control Throughput (HTTP 64K) 2 | 6.7 Gbps |
| CAPWAP Throughput (HTTP 64K) | 35 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 48* |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 128 / 64 |
| Maximum Number of FortiTokens | 5000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Dimensions | |
| Height x Width x Length (inches) | 1.73 x 17 x 10 |
| Height x Width x Length (mm) | 44 x 432 x 254 |
| Weight 12.17 lbs | (5.52 kg) |
| Form Factor (supports EIA/non-EIA standards) | ack Mount, 1RU |
| Operating Environment and Certifications | |
| Input Rating | 100-240VAC, 60-50Hz |
| Power Supply Efficiency Rating | N/A |
| Redundant Power Supplies | Yes (Default dual non-swappable AC PSU for 1+1 Redundancy) |
| Maximum Current | 1.0A @100V, 0.5A @240V |
| Power Consumption (Average / Maximum) | 38 W / 40 W |
| Heat Dissipation | 138 BTU/hr |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 20% to 90% noncondensing |
| Noise Level | 49 dBA |
| Air Flow | Side to back |
| Operating Altitude | Up to 10 000 ft (3048 m) |
| Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI |
| Certifications | USGv6/IPv6 |
Technical Specification
| Hardware Specifications | |
|---|---|
| Hardware Accelerated GE RJ45 Ports | 16 |
| GE RJ45 Management / HA | 1 / 1 |
| Hardware Accelerated GE SFP Slots | 8 |
| Hardware Accelerated 10 GE SFP+ FortiLink Slots (default) | 4 |
| USB Ports | |
| Console (RJ45) Port | 1 |
| Internal Storage | 1 x 480 GB SSD |
| Trusted Platform Module (TPM) | |
| Bluetooth Low Energy (BLE) | |
| Signed Firmware Hardware Switch | — |
| System Performance* — Enterprise Traffic Mix | |
| IPS Throughput 2 | 5.3 Gbps |
| NGFW Throughput 2, 4 | 3.1 Gbps |
| Threat Protection Throughput 2, 5 | 2.8 Gbps |
| System Performance and Capacity | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 39 / 39 / 28 Gbps |
| Firewall Latency (64 byte UDP packets) | 3.17 μs |
| Firewall Throughput (Packets Per Second) | 42 Mpps |
| Concurrent Sessions (TCP) | 3 M |
| New Sessions/Second (TCP) | 140 000 |
| Firewall Policies | 10 000 |
| IPsec VPN Throughput (512 byte) 1 | 35 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2000 |
| Client-to-Gateway IPsec VPN Tunnels | 16 000 |
| SSL-VPN Throughput | 1.5 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 |
| SSL Inspection Throughput (IPS, avg. HTTPS) 3 | 3 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) 3 | 2100 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 | 315 000 |
| Application Control Throughput (HTTP 64K) 2 | 6.7 Gbps |
| CAPWAP Throughput (HTTP 64K) | 35 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 48* |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 128 / 64 |
| Maximum Number of FortiTokens | 5000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Dimensions | |
| Height x Width x Length (inches) | 1.73 x 17 x 10 |
| Height x Width x Length (mm) | 44 x 432 x 254 |
| Weight 12.17 lbs | (5.52 kg) |
| Form Factor (supports EIA/non-EIA standards) | ack Mount, 1RU |
| Operating Environment and Certifications | |
| Input Rating | 100-240VAC, 60-50Hz |
| Power Supply Efficiency Rating | N/A |
| Redundant Power Supplies | Yes (Default dual non-swappable AC PSU for 1+1 Redundancy) |
| Maximum Current | 1.0A @100V, 0.5A @240V |
| Power Consumption (Average / Maximum) | 43 W / 47 W |
| Heat Dissipation | 159 BTU/h |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% noncondensing |
| Noise Level | 49 dBA |
| Air Flow | Side to back |
| Operating Altitude | Up to 10 000 ft (3048 m) |
| Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI |
| Certifications | USGv6/IPv6 |
